Electric Heating Normal Pressure Hot Water Boiler
REALLY ENVIRONMENTALLY FRIENDLY
Electric heating boilers can achieve true "zero" emissions, without having to worry about environmental issues.
AUTOMATIC CONTROL
With the fully automatic control system, you only need to set the required pressure/temperature and other parameters to achieve fully automatic control: automatic start and stop of the burner, automatic water replenishment and other operations; reduce the labor intensity of boiler operators and reduce misoperation caused by human factors.
SAFETY INTERLOCK PROTECTION
Equipped with multiple interlocking protections such as over-temperature*, over-pressure, water shortage, full water, leak detection*, flameout, etc. to ensure safe and reliable operation.

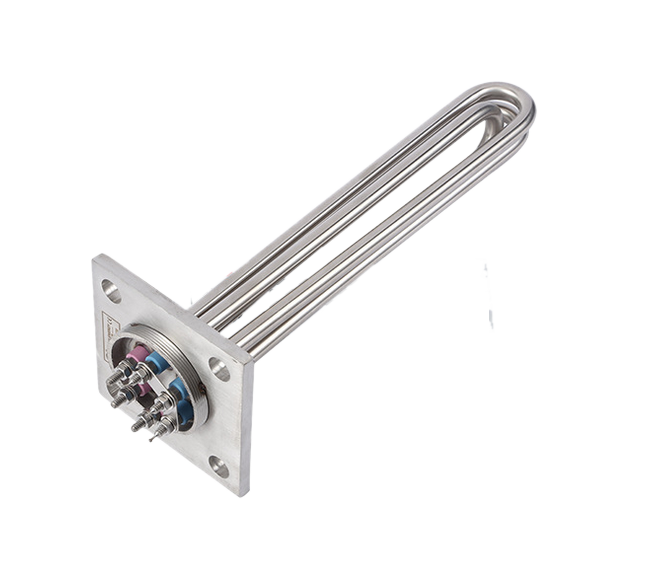

STAINLESS STEEL ELECTRIC HEATING TUBE
It adopts 304 stainless steel electric heating tube, which has sufficient power, stable performance, fast thermal response, long life and stable performance.
MORE BIG
The design adopts a larger furnace type, which has more steam space and better steam quality..
*：Optional configuration
| Model | RATED HEATING CAPACITY(Mw/h) | RATED INLET AND OUTLET WATER TEMPERATURE(℃) | Thermal Efficiency(%) | Consumption (KW/h) |
| CWDR0.06-85/60 | 0.06 | 85/60 | ≥98% | 60 |
| CWDR0.12-85/60 | 0.12 | 85/60 | ≥93% | 120 |
| CWDR0.18-85/60 | 0.18 | 85/60 | ≥98% | 180 |
| CWDR0.24-85/60 | 0.24 | 85/60 | ≥93% | 240 |
| CWDR0.35-85/60 | 0.35 | 85/60 | ≥98% | 350 |
| CWDR0.49-85/60 | 0.49 | 85/60 | ≥93% | 490 |
| CWDR0.7-85/60 | 0.7 | 85/60 | ≥98% | 700 |
| CWDR1.05-85/60 | 1.05 | 85/60 | ≥93% | 1050 |
| CWDR1.4-85/60 | 1.4 | 85/60 | ≥98% | 1400 |
| CWDR2.1-85/60 | 2.1 | 85/60 | ≥93% | 2100 |
| CWDR2.8-85/60 | 2.8 | 85/60 | ≥93% | 2800 |
| CWDR3.5-85/60 | 3.5 | 85/60 | ≥93% | 3500 |
| CWDR4.2-85/60 | 4.2 | 85/60 | ≥93% | 4200 |
Note: Due to technical updates, we cannot display all the latest parameters here. If we make changes, we will not modify them here. We have more models for you to choose from. If your needs are not found here, please contact us.
