Boiler factory - Henan Yinchen Boiler Group Co.,Ltd

Our users are from the whole

World

Our customers include the chemical industry, food industry, manufacturing industry, rubber industry, extraction industry, grain and oil industry equipment, etc.
LEARN MORE
All of our workers are specially trained in

technique

Each technician has been trained by national professional institutions and obtained relevant technical certificates.
LEARN MORE
All of our products are professionally

designed

Each of our products is designed by professional technicians and remotely controlled by computer to ensure the accuracy of the products.
LEARN MORE
Our products have passed strict quality

inspection

All products are inspected by third-party professional organizations and meet industry standards.
LEARN MORE

We Are The BoilerFactory

We supply boiler and container products to the world. The main products are steam boilers, hot water boilers, heat transfer oil boilers, hot blast stoves, pressure vessels, etc., including fuel gas boilers, coal-fired boilers, biomass boilers, electric boilers, etc.

ProfessionalProduction equipment

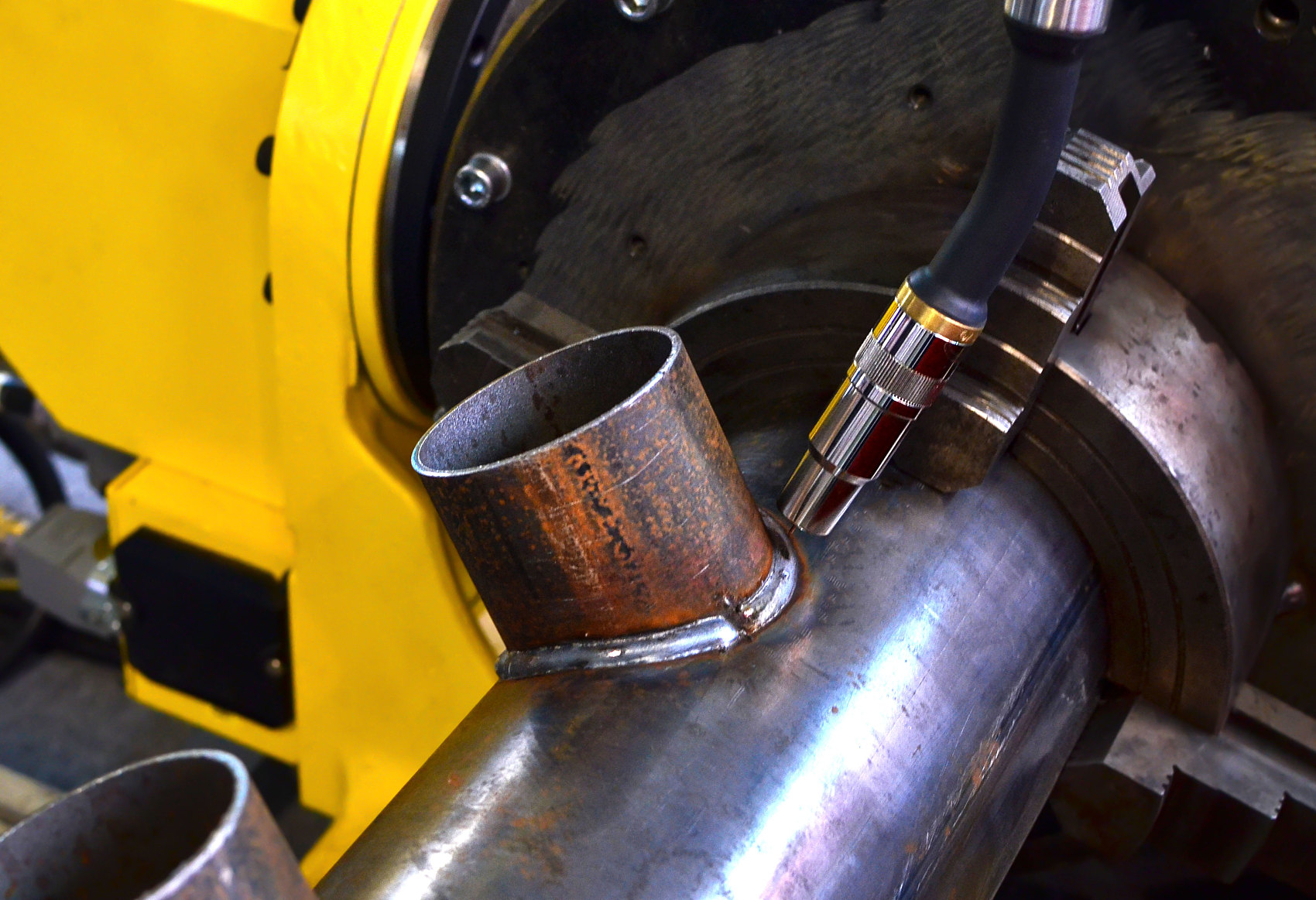

The company has laser cutting machines, welding robots, large lathes, milling machines, ultrasonic flaw detection equipment, magnetic particle inspection equipment, automatic welding machines and so on.

ProfessionalBoiler manufacturer

We specialize in manufacturing boilers for more than 30 years, and providing tens of thousands of boilers worldwide, which are well received by users.

BOILERProuducts

Boiler Burner

Starts From Only $1000

oil and gas burners

GET OFFER

Boiler Controller

Starts From Only $300

Brain of Boiler Operation

GET OFFER

Steam Tank

Starts From Only $3000

Steam storage equipment

GET OFFER

Autoclave

Starts From Only $10000

Gas filling block production equipment

GET OFFER

BoilerProduct Characteristics

Our company provides high-end boiler products in the industry. The production standards are in line with the requirements of China's “Boiler Safety Technical Supervision Regulations” and can provide related products “CE” and “ASME” certification.

BoilerMain Products

WNS Series products

WNS oil-gas fast-loading steam boiler adopts horizontal wet-back three-return structure and micro-positive chamber combustion. The boiler body is composed of a drum, a furnace gallbladder and a flue pipe. The drum is equipped with a steam-water separation device.

Technical Specifications:

Rated evaporation

0.2-20 ton/h

Rated working pressure

0.7/1.0/1.25/1.6/2.0/2.5Mpa

Rated steam temperature

171℃/184℃/194℃/202℃/212℃/224℃

Thermal efficiency

≥94%

Fuel type

Natural gas、Liquid gas、Diesel oil、Heavy oil and so on

Operational mode

Auto-Control
DZH/DZL Series products

This product is a horizontal single drum with three-return water-fired tube boilers longitudinally arranged. The two sides of the furnace are equipped with smooth tube water wall and a group of flue pipes are arranged in the airfoil flue and the drum.

Technical Specifications:

Rated evaporation

1-20ton/h

Rated working pressure

0.7/1.0/1.25/1.6/2.0/2.5Mpa

Rated steam temperature

171℃/184℃/194℃/202℃/212℃/224℃

Thermal efficiency

≥80%

Fuel type

Coal, firewood, biomass fuels, etc.

Operational mode

Semi-automatic
WDR Series products

The WDR series of fully automatic electric steam boilers produced by our company are controlled by micro-computer. They are novel in design and compact in structure. The energy conversion is realized by a new arrangement and combination of electric heating elements.

Technical Specifications:

Rated evaporation

0.1-3 ton/h

Rated working pressure

0.7/1.0/1.25/1.6/2.0/2.5Mpa

Rated steam temperature

171℃/184℃/194℃/202℃/212℃/224℃

Thermal efficiency

≥98%

Fuel type

Electric

Operational mode

Auto-Control
CWNS Series products

CWNS oil-gas fast-loading hot water boiler adopts horizontal three-return structure and micro-positive chamber combustion mode. The boiler body is composed of a drum, a furnace gallbladder and a flue pipe.

Technical Specifications:

Rated heat supply

60-14000 Kw/h

Rated working pressure

0 Mpa

Rated water temperature

85/60℃

Thermal efficiency

≥94%

Fuel type

Natural gas、Liquid gas、Diesel oil、Heavy oil and so on

Operational mode

Auto-Control
YYQW Series products

Organic heat carrier boiler is a new type of special boiler, also known as heat conducting oil boiler. It has low pressure and high temperature working characteristics.

Technical Specifications:

Rated heat supply

120-7000 Kw/h

Rated working pressure

1.1 Mpa

Rated steam temperature

260~310℃

Thermal efficiency

≥94%

Fuel type

Natural gas、Liquid gas、Diesel oil、Heavy oil and so on

Operational mode

Auto-Control
